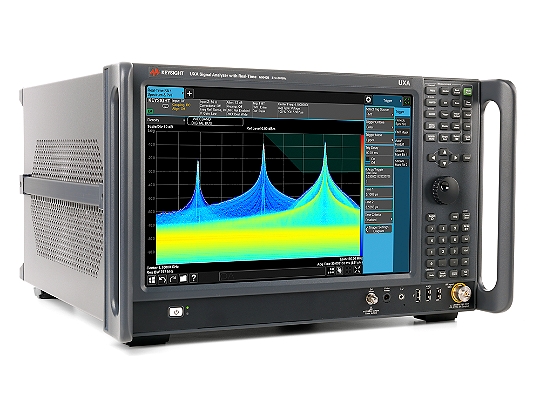

主要特性和功能

通過為測量具有挑戰性的信號提供更寬廣（高達 1 GHz）、更深入的視野，查看設計的真實性能
利用出色的相位噪聲性能、78 dBc 無雜散動態范圍和 510 MHz 帶寬，您可以更好地測量設計的頻譜純度
通過是德科技智能混頻器可將射頻輸入頻率擴展到 110 GHz，使用其他廠商的混頻器可擴展到 THz 級
全頻段實時頻譜分析能夠捕獲間歇性信號
改進的顯示平均噪聲電平（DANL）低噪聲路徑有助于捕獲更低電平雜散信號

Frequency range
N9040B-508	頻率范圍，3 Hz 至 8.4 GHz 3 Hz 至 8.4 GHz 3.6 或 8.4 GHz 可選內置前置放大器可作為售后升級選件
N9040B-513	頻率范圍，3 Hz 至 13.6 GHz 3 Hz 至 13.6 GHz 3.6 或 13.6 GHz 可選內置前置放大器可作為售后升級選件
N9040B-526	頻率范圍，3 Hz 至 26.5 GHz 3 Hz 至 26.5 GHz 3.6 或 26.5 GHz 可選內置前置放大器可作為售后升級選件
N9040B-550	Frequency Range 3 Hz To 50 GHz Frequency Range: 3 Hz to 50 GHz Available at time of purchase only
N9040B-544	Frequency Range 3 Hz To 44 GHz Frequency Range: 3 Hz to 44 GHz Available at time of purchase only

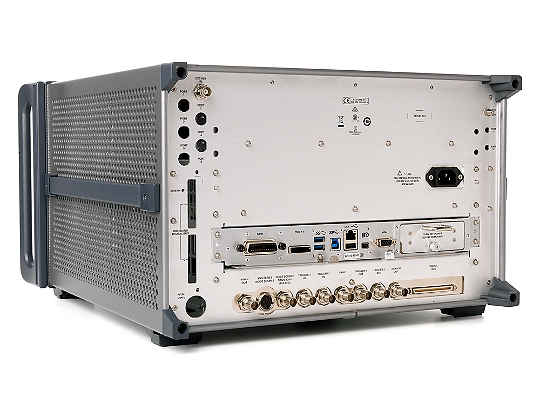

Connector options
N9040B-ALV	輔助對數視頻輸出輸出變化大約 25 mV/dB 屏幕上方的輸出為 1.6 V 輸出阻抗為 50 Ω（標稱值）可作為售后升級選件
N9040B-C35	連接器，射頻輸入，3.5 mm 陽頭使用 3.5 mm 連接器代替標配的 N 型連接器可作為售后升級選件
N9040B-CRP	連接器，可編程后面板中頻輸出中頻輸出的頻率可以在 10 MHz 至 75 MHz 之間以 500 kHz 步進進行調整中頻輸出帶寬為 100 MHz 標稱值，中心頻率為 70 MHz 連接器類型：SMA（陰頭），50 Ω 阻抗標稱值可作為售后升級選件
N9040B-YAV	Y 軸輸出屏幕視頻輸出與顯示視頻相同模擬輸出連接器的對數視頻滿標度為 1 V 模擬輸出的線性視頻采用線性標度可作為售后升級選件

Preamplifier
N9040B-P08	前置放大器，8.4 GHz +35 dB 增益 -172 dBm DANL，配有前置放大器和本底噪聲擴展前置放大器能夠增強探測低電平信號的能力可作為售后升級選件
N9040B-P13	前置放大器，13.6 GHz +35 dB 增益 -170 dBm DANL，配有前置放大器和本底噪聲擴展前置放大器能夠增強探測低電平信號的能力可作為售后升級選件
N9040B-P26	前置放大器，26.5 GHz +35 dB 增益 -162 dBm DANL，配有前置放大器和本底噪聲擴展前置放大器能夠增強探測低電平信號的能力可作為售后升級選件
N9040B-P44	Preamplifier, 44 GHz +40 dB gain up to 44 GHz for enhanced sensitivity to low signal levels Up to –172 dBm DANL with preamp and noise floor extension Available as a post-purchase upgrade
N9040B-P50	Preamplifier, 50 GHz +40 dB gain up to 50 GHz for enhanced sensitivity to low signal levels Up to –172 dBm DANL with preamp and noise floor extension Available as a post-purchase upgrade

Bandwidth
N9040B-B2X	Analysis Bandwidth, 255 MHz Supports real-time spectrum analyzer Capture memory: 2 GB ADC resolution: 14 bits Available as a post-purchase upgrade
N9040B-B5X	Analysis Bandwidth, 510 MHz Supports real-time spectrum analyzer Capture memory: 2 GB ADC resolution: 14 bits Available as a post-purchase upgrade
N9040B-B25	分析帶寬，25 MHz 捕獲存儲器：2 GB ADC 分辨率：12 位元可作為售后升級選件
N9040B-B40	Analysis Bandwidth, 40 MHz Capture memory: 2 GB ADC resolution: 12 bits Available as a post-purchase upgrade
N9040B-H1G	1 GHz 分析帶寬分析帶寬擴展至 1 GHz ??頻率范圍：3 Hz 至 50 GHz ??ADC 分辨率：12 位 ??包括 255 MHz（B2X）能力 ??只在購買時提供

Performance options
N9040B-EA3	電子衰減器，3.6 GHz 步長：1 dB 范圍：0 至 24 dB 包括機械衰減的完整范圍：94 dB 可作為售后升級選件
N9040B-EMC	基本預兼容性 EMI 完全符合 CISPR 16-1-1（2010）標準的檢波器高達 18 GHz 的 CISPR 頻段預置使用 3 臺檢波器在游標處測量用于信號識別的調諧和偵聽可作為售后升級選件
N9040B-FP2	快速功率，帶寬高達 40 MHz 單次采集帶寬：40 MHz 啟用硬件加速快速功率測量為功率測量而優化可作為售后升級選件
N9040B-RTS	Real-Time Wideband I/Q Data Streaming Real-Time Wideband I/Q Data Streaming May be combined with X-COM IQC5255B for turnkey 255 MHz record and playback solution 16-bit I + jQ digital data at up to 300 MSamples/S, continuously variable based on span setting Available as a post-purchase upgrade
N9040B-FT1	Frequency Mask Trigger, Basic Detection License Capture elusive, intermittent signals for further analysis > 15 µs signal duration Seamless operation in 89600 VSA Software and N9067C pulse application Available as a post-purchase upgrade
N9040B-FT2	Frequency Mask Trigger, Optimum Detection License Capture elusive, intermittent signals for further analysis > 3.6 µs signal duration Seamless operation in 89600 VSA Software and N9067C pulse application Available as a post-purchase upgrade
N9040B-DUA	Duplex IF RTSA Enables control of 2 x 255MHz DIF for optimized frequency and time domain analysis in RTSA mode at the same center frequency Able to view RT spectrum, Power vs Time, Powergram, and Spectrogram all at the same time with independent time domain and frequency domain spans Requires option B5X and RT1 or RT2 Available as a post-purchase upgrade
N9040B-TDS	Time Domain Scan ~90% overlap in the time domain for amplitude accuracy and fast transient capture CISPR-compliant amplitude accuracy and weighted detector performance Monitor spectrum and amplitude probability distribution Available as a post-purchase upgrade

Calibration options
N9040B-A6J	ANSI Z540 一致性校準從工廠裝運并經過 ANSI Z540 校準提供測量結果、不確定度數據和技術指標確定合格/不合格狀態時不包含不確定度數據只在購買時提供
N9040B-UK6	包含測試數據的商業校準證書由是德科技工廠實施的商業校準校準證書印刷本關于從 Infoline 下載測試數據報告的指導只在購買時提供


Real time signal analysis
N9040B-RT1	Real-time analysis, basic detection, 255 MHz with B2X/H1G, 500 MHz with B5X, license
N9040B-RT2	Real-time analysis, optimum detection, 255 MHz with B2X/H1G, 500 MHz with B5X, license

Security features
N9040B-SF1	安全特性，不包括啟動程序許可證密鑰激活，提供額外的安全功能特性需要 A.12.06 版本或更高版本的軟件可作為售后升級選件
N9040B-SF2	安全特性，禁止保存結果許可證密鑰激活，提供額外的安全功能特性需要 A.14.00 版本或更高版本的軟件可作為售后升級選件
N9040B-SSD	額外的可拆卸固態硬盤串行 ATA（SATA）數據接口的可拆卸固態硬盤堅固的可拆卸托架，少可插入 1500 次操作系統、軟件和校準文件鏡像可作為售后升級選件


N9040B-ESC	External source control

N9040B-DVR	USB DVD-ROM/CD-R/RW 驅動器連接到前面板或后面板上的 USB 端口從 Microsoft® Windows 用戶界面訪問 DVD 或 CD 介質可作為售后升級選件

N9040B-KB2	USB keyboard Smaller keyboard

N9040B-MLP	50 至 75 Ω 小損耗衰減器（N 型至 BNC）連接器：50 Ω N 型（陽頭）至 75 Ω BNC（陰頭）連接器插入損耗：5.7 dB 輸入/輸出回波損耗：20 dB 大輸入功率：1 W 平坦度：+/- 2 dB 可作為售后升級選件

N9040B-MSE	Mouse, USB

N9040B-2CM	Rack mount flange kit 265.9mm H (6U) - two flange brackets, two standard rails, DARK COLORS

N9040B-2CP	Rack mount flange and handle kit 265.9mm H (6U) - two brackets, handles, rails, DARK COLORS

Application software
89601B	- 89600 VSA 軟件蜂窩、無線連通性、航空航天、國防、通用同時查看多個時域、頻域和調制域視圖先進故障診斷工具包括觸發、記錄和回放支持超過 45 種是德科技測量平臺
N6171A	MATLAB 軟件創建任意波形定制測量/數據分析例程、儀器應用程序/測試系統自動化測量以及信號與報告生成可通過購買兼容儀器從是德科技直接獲
N9063C	配有多點觸控用戶界面、適用于 UXA 的模擬解調測量應用軟件多點觸控用戶界面對 AM、FM、PM 和 FM 立體聲信號進行一鍵式測量顯示調制參數：AM 深度、FM/PM 偏差、THD、SINAD、FM 立體聲可作為售后升級選件
N9067C	Pulse Measurement Application, Multi-touch UI Automatically synchronize to pulsed signals up to 50 GHz and bandwidth of 510 MHz View key pulse signal modulation performance indicators and pulses in a time, frequency and phase-domains Runs inside X-Series signal analyzers with multi-touch UI 查看詳情
N9068C	Phase Noise Measurement Application, Multi-touch UI 1-touch measurements for analyzing phase noise in frequency domain (log plot) & time domain (spot frequency) 查看詳情
N9069C	噪聲系數測量應用軟件，多點觸控用戶界面噪聲系數/增益測量一鍵式測量：噪聲系數、增益、Y 因數、有效溫度和熱態/冷態功率密度支持 SNS 346 系列噪聲源和 U7227x 系列 USB 前置放大器可作為售后升級選件查看詳情
N9071C	GSM / EDGE / Evo Measurement Application, Multi-Touch UI GSM, EDGE and EDGE Evolution including VAMOS1 and Multi-Carrier BTS (MCBTS) per 3GPP GERAN standard Base station and mobile station RF transmitter measurements; analog baseband measurements One-button measurements with pass/fail per the standard
N9073C	W-CDMA/HSPA/HSPA+ Measurement Application, Multi-touch UI W-CDMA/HSPA/HSPA+ per 3GPP Release 99 to 8 Includes uplink/downlink RF transmitter measurements Transmit analog baseband measurements with BBIQ hardware 1-touch measurements with pass/fail per the standard
N9077C	WLAN 802.11a/b/g/j/p/n/ac/af/ah/ax Measurement Application, Multi-Touch UI Compliant to 802.11a/b/g/j/p/n, 802.11ac, 802.11af, 802.11ah, 802.11ax IEEE series standards for WLAN design/manufacturing test Manual settings for 802.11a-turbo mode One-button pass/fail measurements per standard
N9080C	LTE/LTE-Advanced FDD 測量應用軟件，多點觸控用戶界面按照 3GPP 第 8 版到第 13 版標準進行 LTE 和 LTE-Advanced FDD 信號分析使用單一選件提供上行鏈路和下行鏈路測量多達 5 個子載波的載波聚合在具有多點觸控用戶界面的 UXA、PXA、MXA、EXA 和 CXA X 系列信號分析儀中運行
N9081C	Bluetooth Measurement Application, Multi-Touch UI Compliant with Bluetooth® Core Specification Version 2.1+ EDR & Low Energy (BR/EDR/LE 4.0/4.2/5.0) One-button measurements with pass/fail per the standard
N9082C	LTE / LTE-Advanced TDD Measurement Application, Multi-touch UI LTE and LTE-Advanced TDD per 3GPP Release 8 to 12 Includes Uplink and downlink measurements in a single option Carrier aggregation up to five component carriers Runs inside UXA, PXA, MXA, EXA and CXA X-Series signal analyzers with multi-touch UI
N9084C	Short Range Communications Measurement Application, Multi-Touch UI Compliant with ZigBee (IEEE 802.15.4) and Z-Wave RF transmitter tests One-button measurements with pass/fail per the standard Runs inside UXA, PXA, MXA, EXA, and CXA X-Series signal analyzers with multi-touch UI
N6141C	EMI Measurement Application, Multi-Touch UI Built-in CISPR and MIL-STD compliant bandwidths, detectors and band presets Automated testing to regulatory Limit Lines with user-selected margins Amplitude correction for antennas, LISNs, cables, preamps
N9054C	VMA 矢量調制分析應用軟件，多點觸控用戶界面用于猝發分析的 FFT 頻譜分析和時域分析工具通用模擬和數字調制分析（可選）在具有多點觸控用戶界面的 UXA、PXA、MXA、EXA 和 CXA X 系列信號分析儀中運行
N9061C	Remote Language Compatibility Application, Multi-Touch UI Emulate HP/Keysight 856xE/EC or 8566/8568 spectrum analyzers in remotely controlled, ATE systems Migrate 856xE/EC-based or 8566/8568-based ATE systems to seamlessly include a modern signal analyzer

Additional documentation
N9040B-AB1	Korean localization, user interface and getting started guide
N9040B-AB2	Chinese localization, user interface and getting started guide
N9040B-ABF	French localization, user interface and getting started guide
N9040B-ABJ	Japanese localization, user interface and getting started guide
N9040B-AKT	Russian localization, user interface and getting started guide
N9040B-ABE	Spanish localization, user interface and getting started guide

N9040B-RTR	Real-time Spectrum Recorder and Analyzer Application Example, License

頻率選件	8.4, 13.6, 26.5, 44, 50 GHz, Mixers to 1.1 THz
大分析帶寬	1 GHz
帶寬選件	25 standard, 40, 255, 510 MHz, 1 GHz
大實時帶寬	510 MHz
實時帶寬選件	255, 510 MHz
1 GHz 時的 DANL	-171 dBm
1 GHz 時，10 kHz 頻偏處的相位噪聲	-136 dBc/Hz
1 GHz 時，30 kHz 頻偏處的相位噪聲	-136 dBc/Hz
1 GHz 時，1 MHz 頻偏處的相位噪聲	-146 dBc/Hz
總體幅度精度	±0.16 dB
三階截獲（TOI），1 GHz 時	+22 dBm
1 GHz 時的大三階動態范圍	119 dB
應用——通用	89600 VSA 軟件模擬解調噪聲系數相位噪聲脈沖實時頻譜分析 MATLAB
應用——蜂窩	GSM/EDGE LTE/LTE-Advanced NB-IoT W-CDMA/HSPA/HSPA+
應用——無線連通性	Bluetooth® (BR/EDR/LE4.2/5.0) Short Range Communications (ZigBee, Z-Wave) WLAN 802.11(a/b/g/j/p/n/ac/af/ah/ax)
應用——數字視頻	無
性能水平	◆◆◆◆◆◆
標準衰減器衰減范圍	70 dB
標準衰減器步進	2 dB
100% 截獲概率的短信號持續時間	3.51 µs
信掩比 > 60 dB 時的可檢測信號持續時間	3.33 ns
無雜散動態范圍	78 dBc
多域帶寬	255 MHz
顯示視圖	密度頻譜圖密度頻譜圖 PvT（功率隨時間的變化）頻譜 PvT（功率隨時間的變化）頻譜圖 PvT（功率隨時間的變化）
觸發	FMT（頻率模板觸發） TQT（時間限定觸發）電平射頻猝發線路外置周期 Density Density Spectrogram PvT (Power vs Time) PvT (Power vs Time) Spectrogram Spectrogram
使用頻率模板觸發的應用軟件	89600 VSA 軟件實時頻譜分析儀 Pulse Measurement Application
2 GHz 時的 DANL，不配備前置放大器	-155 dBm/Hz
10 GHz 時的 DANL，不配備前置放大器	-156 dBm/Hz
可用應用	是
臺式	是
Real-Time Data Streaming	是
