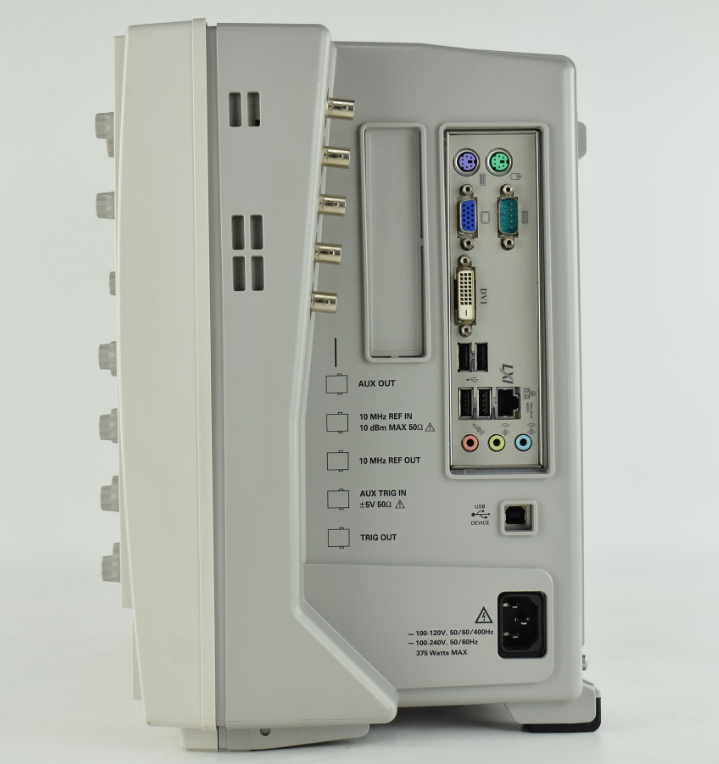

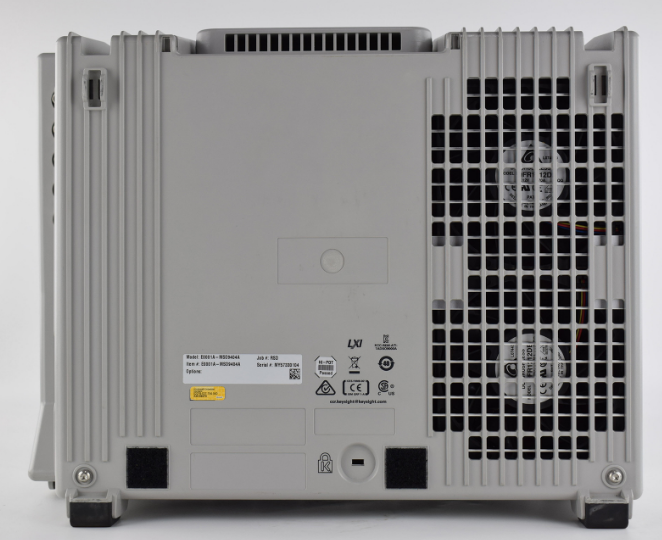

MSO9404A 混合信號示波器

 提示:點擊圖片可以放大
主要特性和功能
4 GHz 帶寬
4 個模擬通道和 16 個數字通道
三合一儀器:示波器、邏輯分析儀和協議分析儀
每個通道配置 20 Mpts 存儲器,能夠捕獲更多數據,并且存儲器可以升級為 1 Gpts
20 GSa/s 采樣率和 InfiniiScan 高級觸發能夠提供更多信號細節
全面的一致性測試、協議和分析應用軟件能夠擴展測量功能:串行協議、FPGA 動態探頭、抖動分析(包括 EZJIT)、MATLAB 等等

帶寬 4 GHz
通道數 4 + 16
最大存儲器深度
40 Mpts(2 通道),20 Mpts(4 通道)

最大采樣率 20 GSa/s




選件
Data Storage
MSO9000A-801 Removable Hard Drive - installed
Additional Memory
MSO9000A-50M Memory - 50 Mpts/ch installed
MSO9000A-100 Includes 100 Mpts/CH Memory
MSO9000A-200 Includes 200 Mpts/CH Memory
MSO9000A-500 Includes 500 Mpts/CH Memory
Calibration Documentation
MSO9000A-A6J ANSI Z540-1-1994 Calibration
Software Applications
MSO9000A-015 Power Measurement application software, fixed perpetual license
Software Compliance Applications
MSO9000A-021 Ethernet compliance application, fixed perpetual license
MSO9000A-029 USB2.0 compliance application, fixed perpetual license
MSO9000A-031 DDR and LPDDR compliance test application, fixed perpetual license
MSO9000A-032 DDR2 and LPDDR2 compliance test application, fixed perpetual license
MSO9000A-033 DDR3 up to 800MHz validation application, fixed perpetual license
MSO9000A-035 MIPI D-Phy Compliance application, fixed perpetual license
MSO9000A-023 HDMI Software Application, fixed perpetual license
MSO9000-058 DDR4 compliance test software application, installed fixed perpetual license
MSO9000-060 Energy Efficient Ethernet Electrical Performance Validation and Conformance application, fixed perpetual license
MSO9000-073 MOST compliance Application for Infiniium scopes - installed fixed, perpetual license
MSO9000-065 BroadR-Reach compliance application for Infiniium scopes - installed fixed, perpetual license
MSO9000-064 Compliance application eMMC - installed
Accessories
MSO9000A-1CM Rack Mount Kit Option
Regional Distribution Center
MSO9000-PLG Continental European Power Cord - Only For EU DISTR W MULT Power Cord Standards
