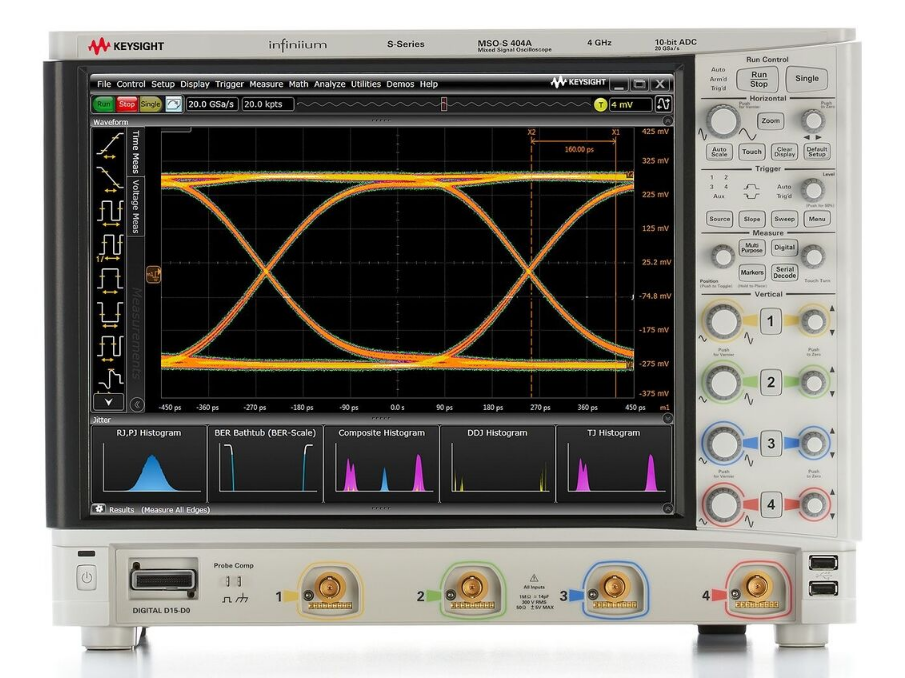

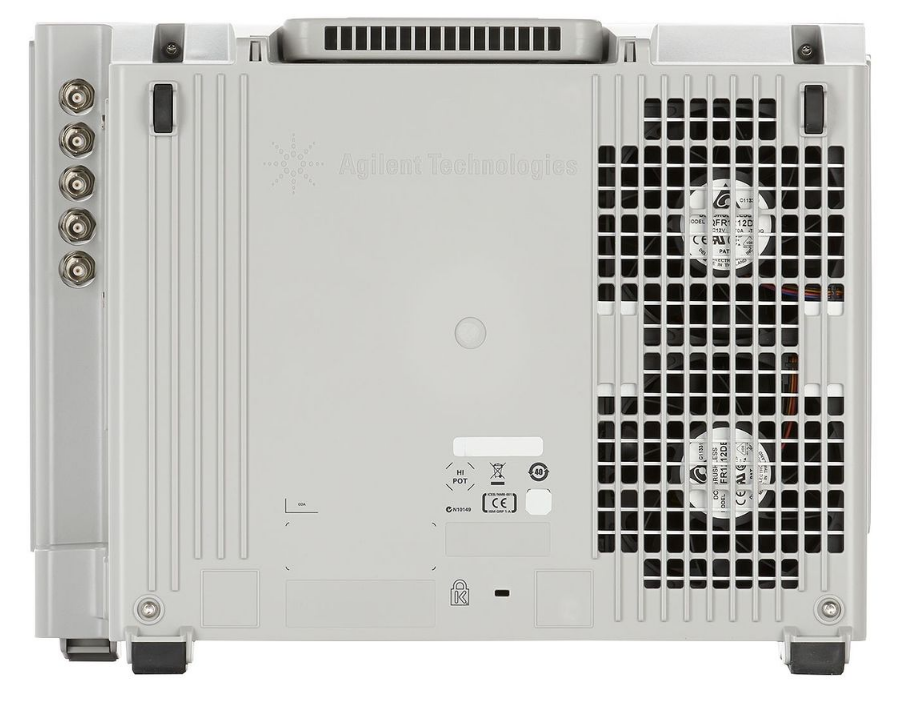

MSOS404A 高清晰度示波器
主要特性和功能
4 GHz 帶寬（可升級）
4 個模擬通道和 16 個數字通道
高達 20 GSa/s 的采樣率和每通道標配的 50 Mpts 存儲器可以捕獲更長時間的信號跡線
具有 7.2 位系統 ENOB 和 10 位模數轉換器（ADC），可獲得出色的信號完整性
15 英寸多點觸控電容觸摸屏讓示波器更容易使用，固態硬盤可以加快啟動速度和提高可靠性
廣泛的協議、一致性測試和分析軟件可以改善您的測試
技術指標
帶寬 4 GHz
通道數 4 + 16
最大存儲器深度
800 Mpts (2 channels), 400 Mpts (4 channels)
最大采樣率
20 GSa/s (2 channels), 10 GSa/s (4 channels)
ADC 位數 10 bits
